The Number of Orders Request

The purpose of this functionality is to provide the number of orders for a particular provider, account and optionally an instrument.

The nrOfOrderIds format

The nrOfOrderIds request receives a total of 4 parameters which will filter the number of orders.

The parameters are separated by a vertical bar ‘|’ character. Parameters in [ ] can be omitted.

nrOfOrderIds( Provider | Account | [Instrument] | [Working] )

The standard call of the RTD function which uses nrOfOrderIds:

=RTD("qst.rtd", "", "nrOfOrderIds( Provider | Account | [Instrument] | [Working] )")

The nrOfOrderIds parameters are explained below:

Provider – the order entry provider, ex. PTS, QOR
Account – filter by account number
Instrument – [optional] filter by a specific instrument, if missing it will filter by provider and account
Working – [optional] filter by active orders by using the keyword “WRK”, if missing it will display all orders (including canceled ones)

Note

The order of these parameters is mandatory, ex. Parameter 1, Provider, cannot be switched with parameter 2, Account.

Example of nrOfOrderIds request

After selecting any desired cell from the Excel spreadsheet, copy paste the RTD function in the formula bar, having replaced the RTD parameters accordingly. Or enter the parameters separately and combine them for the RTD request.

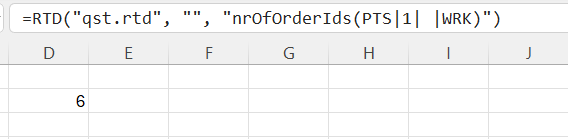

Requesting the number of all active orders from account 1:

=RTD("qst.rtd", "", "nrOfOrderIds( PTS | 1 | | WRK )")

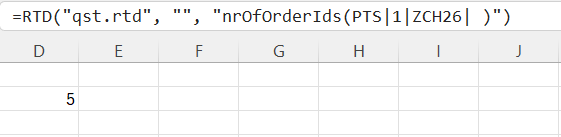

Requesting the number of all orders from account 1 and instrument ZCH26:

=RTD("qst.rtd", "", "nrOfOrderIds( PTS | 1 | ZCH26 | )")

Requesting the number of all active orders from account 1 and instrument ZCH26:

=RTD("qst.rtd", "", "nrOfOrderIds( PTS | 1 | ZCH26 | WRK )")

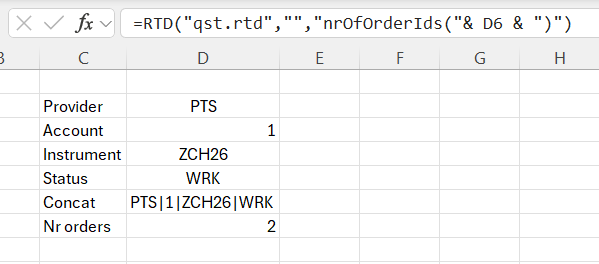

In the screenshot the nrOfOrderIds parameters are first concatenated: =CONCAT(D2,”|”,D3,”|”,D4,”|”,D5) , resulting in the string “PTS|1|ZCH26|WRK” stored in cell D6.

This is then passed as a parameter to the main request: =RTD(“qst.rtd”,””,”nrOfOrderIds(”& D6 & “)”).
